Titan TN-1560, 2 needle, walking foot, Various gauges

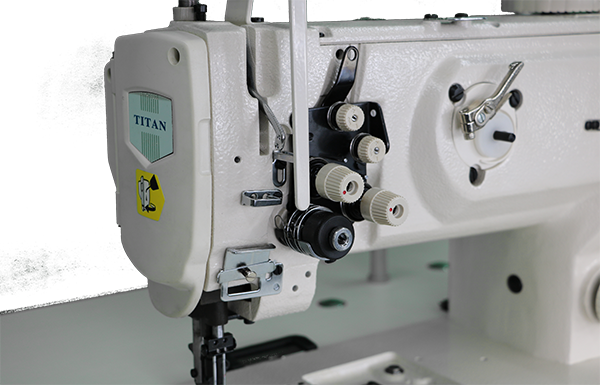

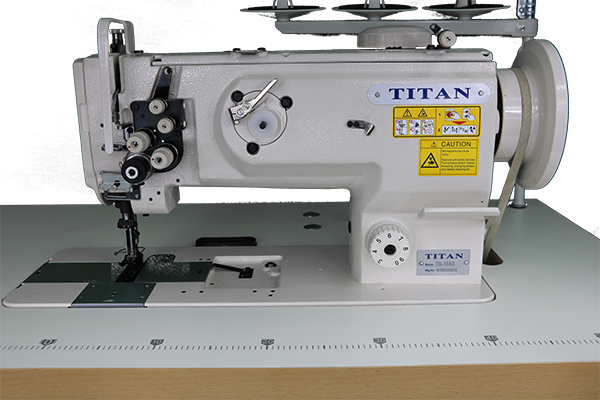

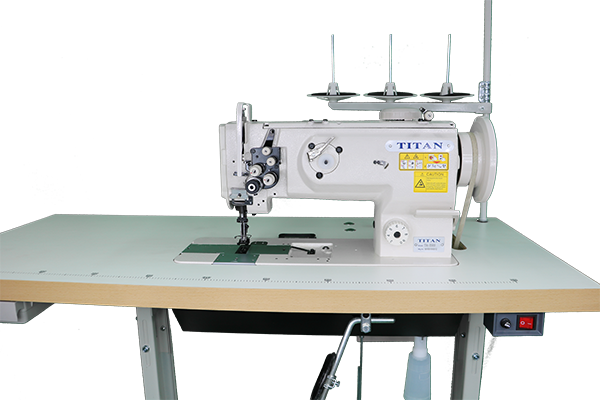

This machine is a two needle, compound feed with walking foot lockstitch sewing machine.  It is equipped with a climbing device that allows the adjustment to the alternation of the upper feed of the machine to climb over different thicknesses of material without using any tools.  This can be done on the "fly" so downtime of the machine due to setup is virtually nil.  Developed from the regular TN-1508 series machine, it has a working space of 255 mm(10.2") x 100 mm(4") which is the standard size for most machines.  It is suitable for sewing medium to heavy duty materials, such tents, cushion, tarpaulins, car cover etc.

TN-1560
Max Speed: 2500
Needles: 2
Needles: DPx17 #125~#180
Max Stitch Length: 9mm
Thread: Tex 45 to Tex 135 (Tex 210 with larger hook)
Foot Lift: 9mm by hand 16mm by foot
Alternation of upper feed: 2.5~6.5 mm
Needle bar throw: 36mm
Needle bar gauge: 4.8mm, 6.4mm, 7.9mm, 9.5mm, 12.7mm (3/16, 1/4, 5/16, 3/8, 1/2) (Larger also available)
Sewing Space: 255mm x 100mm (10.2" x 4")
Hook Style: 2 x Large Vertical Axis hook (Optional ultra heavy available)
Air requirement: None
